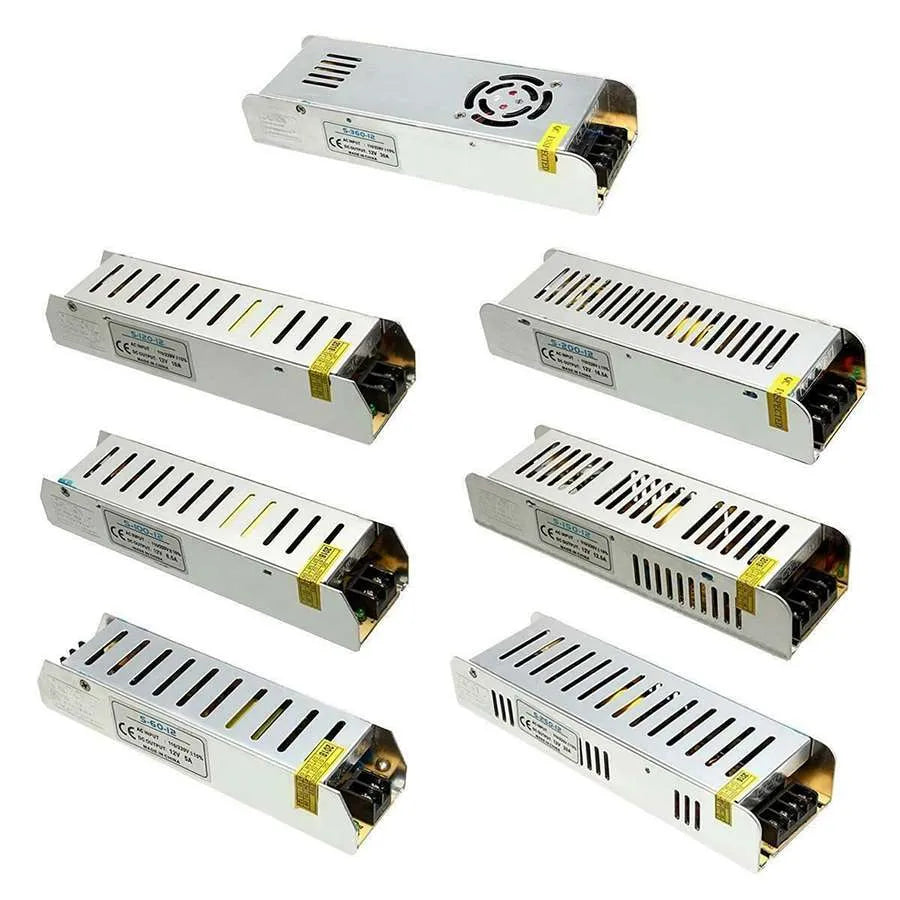

LED Driver 12V Slim Transformer 60W-360W~1410

LED Driver 12V Slim Transformer 60W-360W~1410

RM30.82 MYR
RM0.00 MYR RM30.82 MYR
Sale Sold out
Shipping calculated at checkout.

Descriptions Of 12V Lighting Transformers

Item Type Slim LED Driverr
Shell Material Aluminum alloy
Input Voltage AC110-220V
Input Frequency Range 50/60Hz
Output Voltage DC 12V
IP Rating IP20
Output Power 60w -360w
Output Type 3 Way
Work Temperature -10°C to 60°C
Average Life 50000 Hours

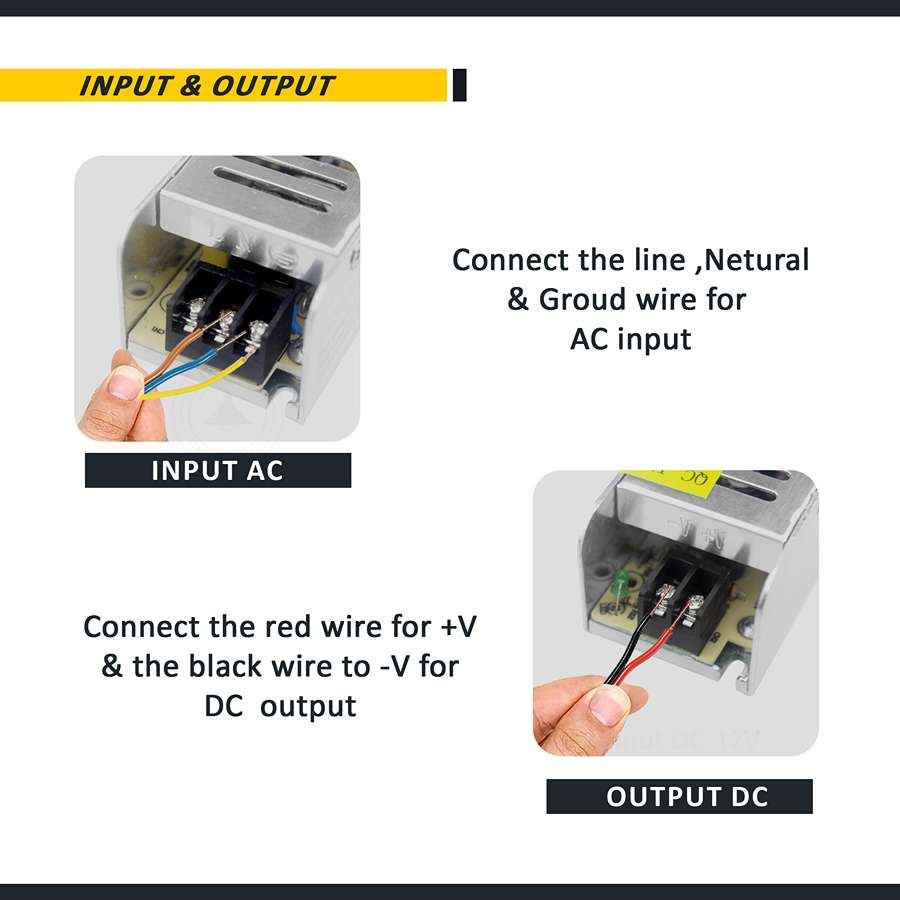

Connection Type Screw Terminals
Certificate CE & RoHS certification
Power Input Voltage Output Current Length Width Height Fan No of output (in pairs) Weight Regulated Switching

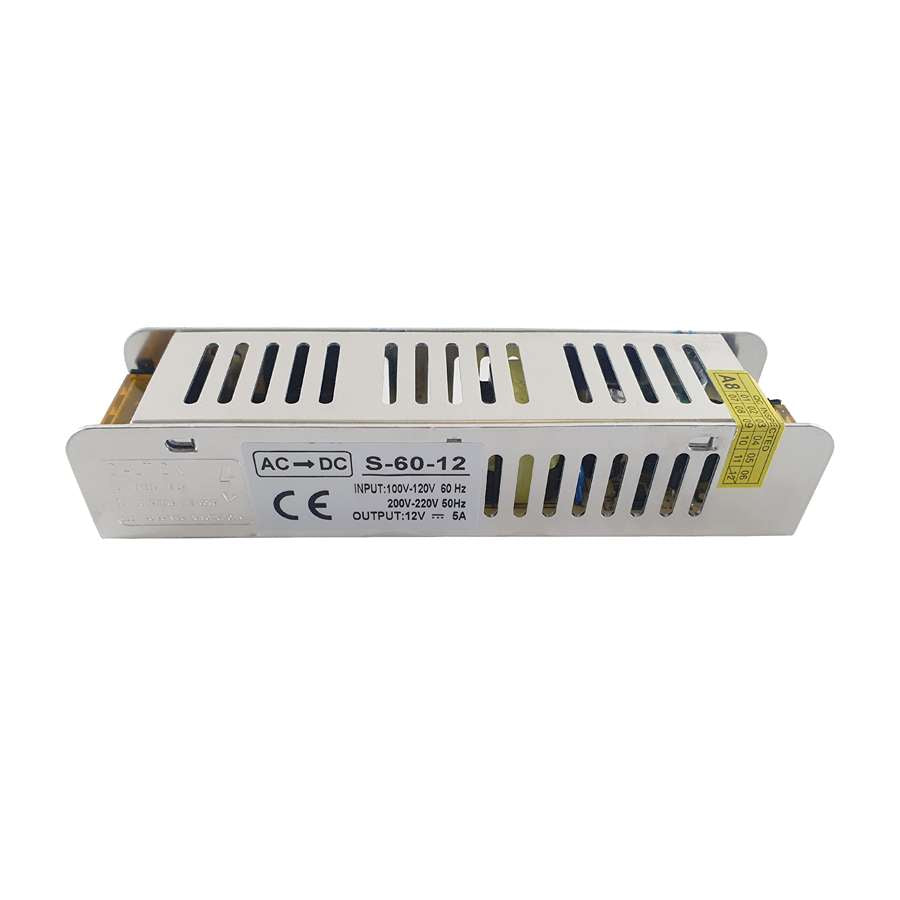

60W 100-220V 6A 160mm 40mm 32mm No 1 145g No

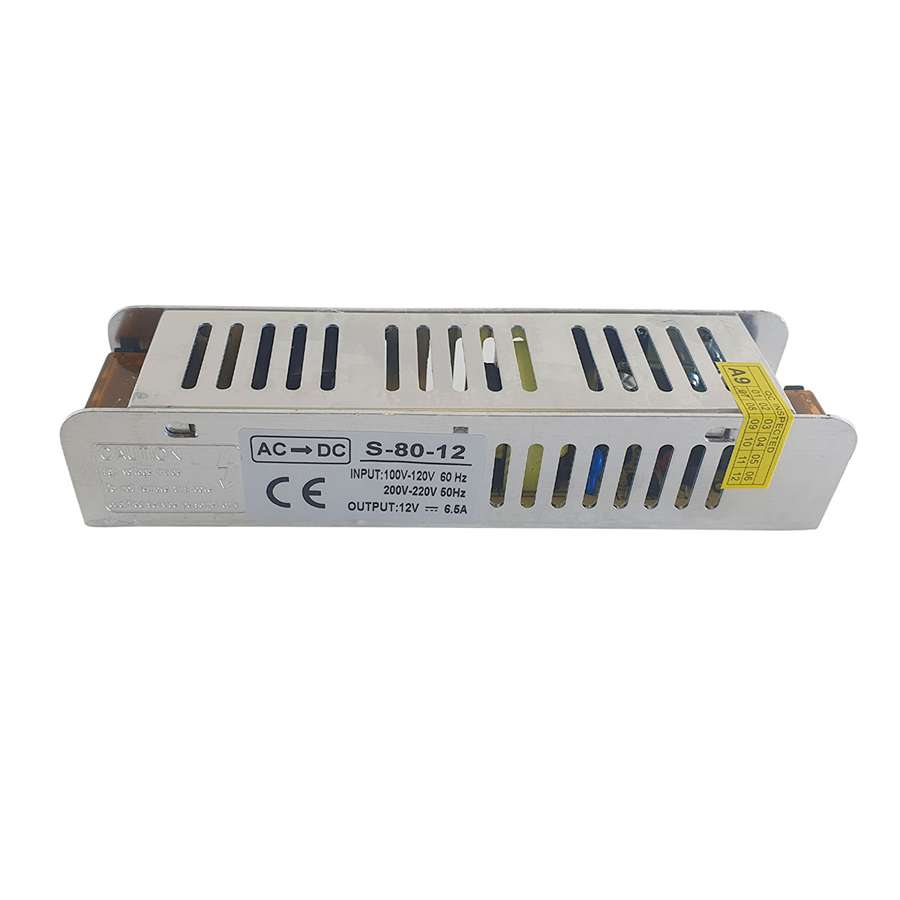

80W 100-220V 6.6A 160mm 40mm 32mm No 1 150g No

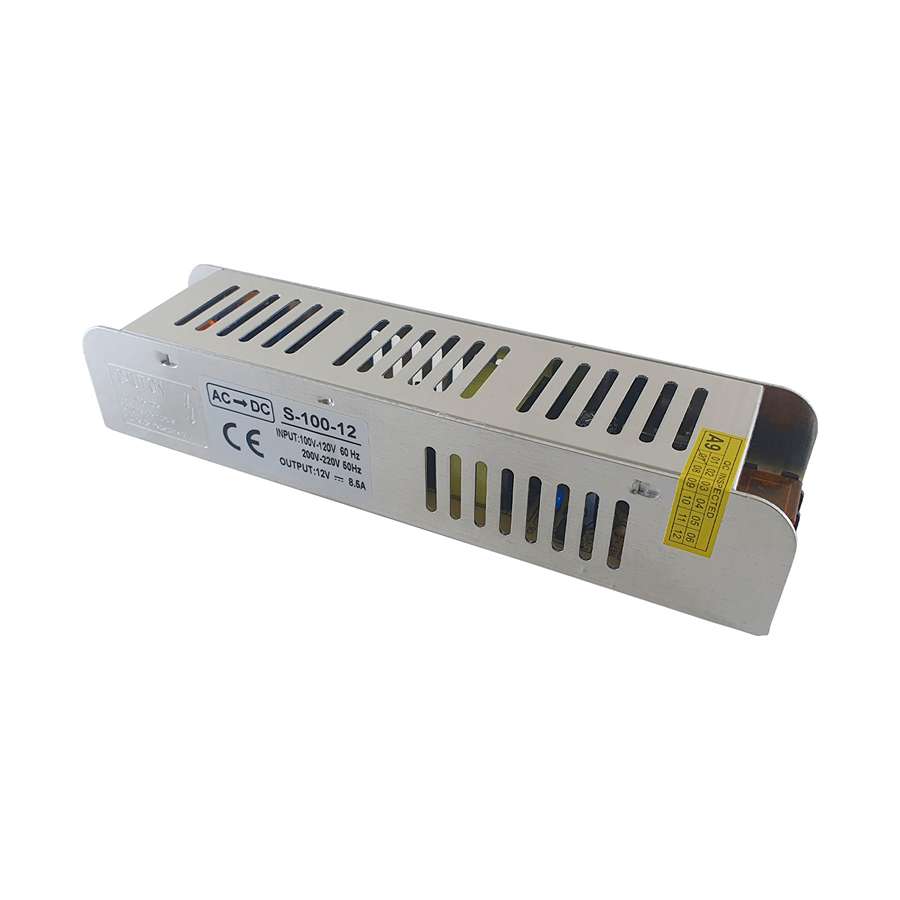

100W 100-220V 8.5A 190mm 46mm 36mm No 1 200g No

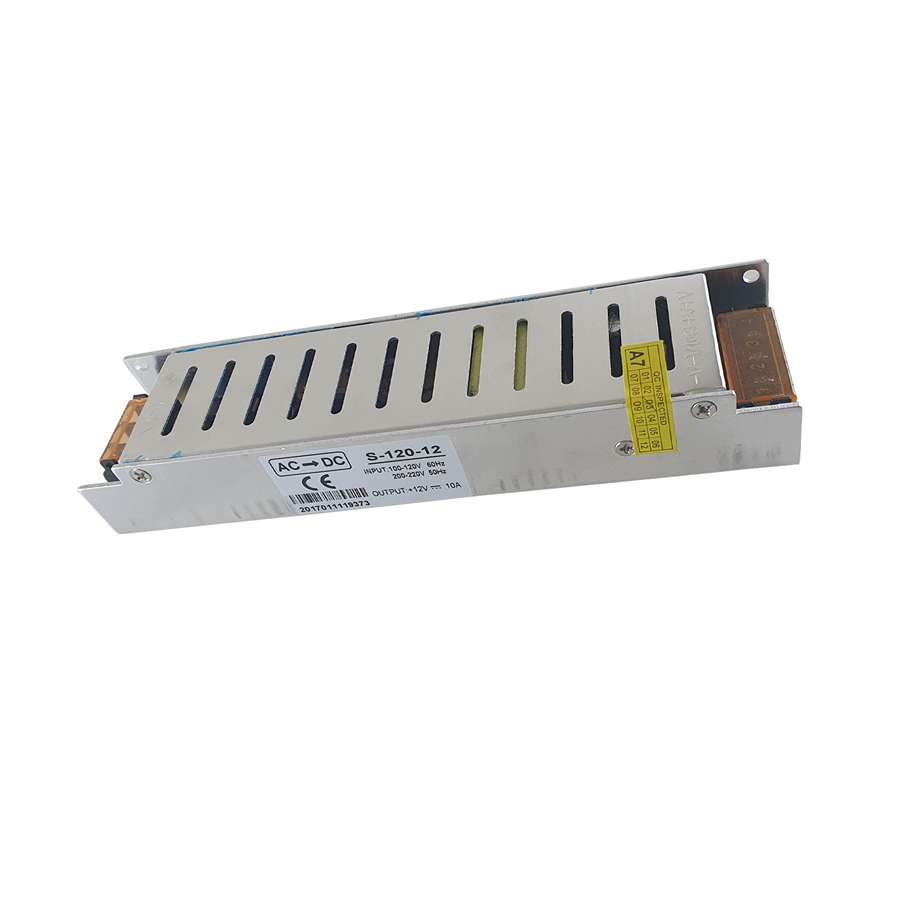

120W 100-220V 10A 190mm 46mm 36mm No 1 225g No

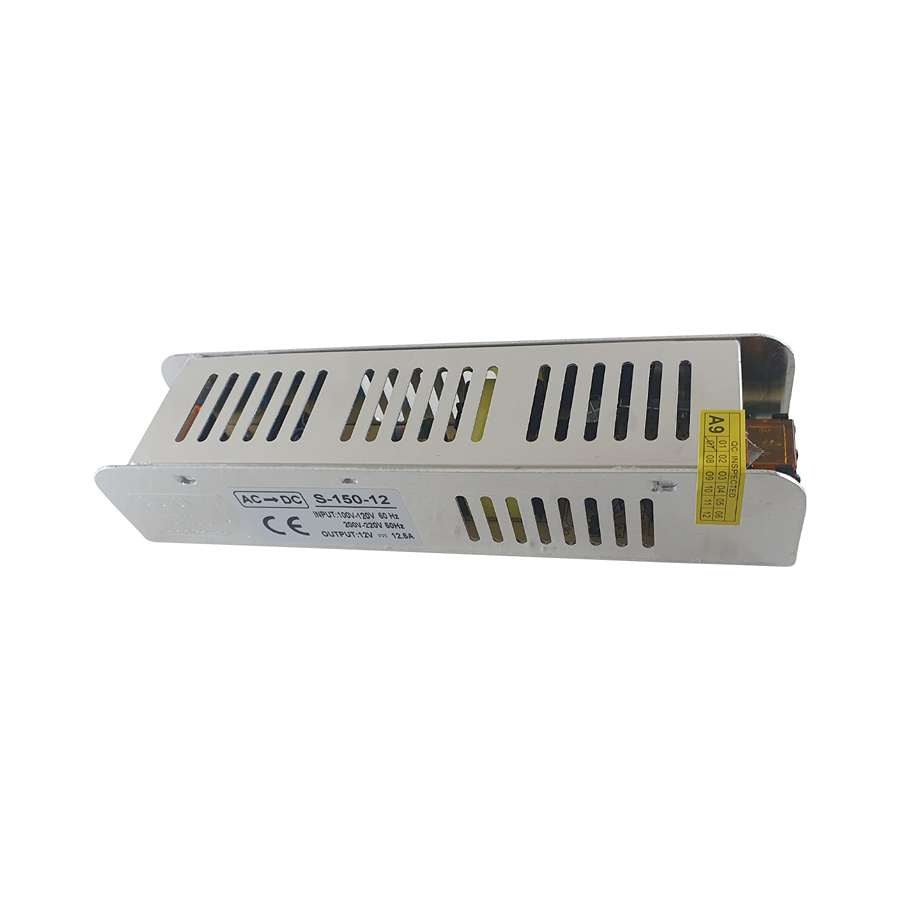

150W 100-220V 12.5A 190mm 46mm 36mm No 1 220g No

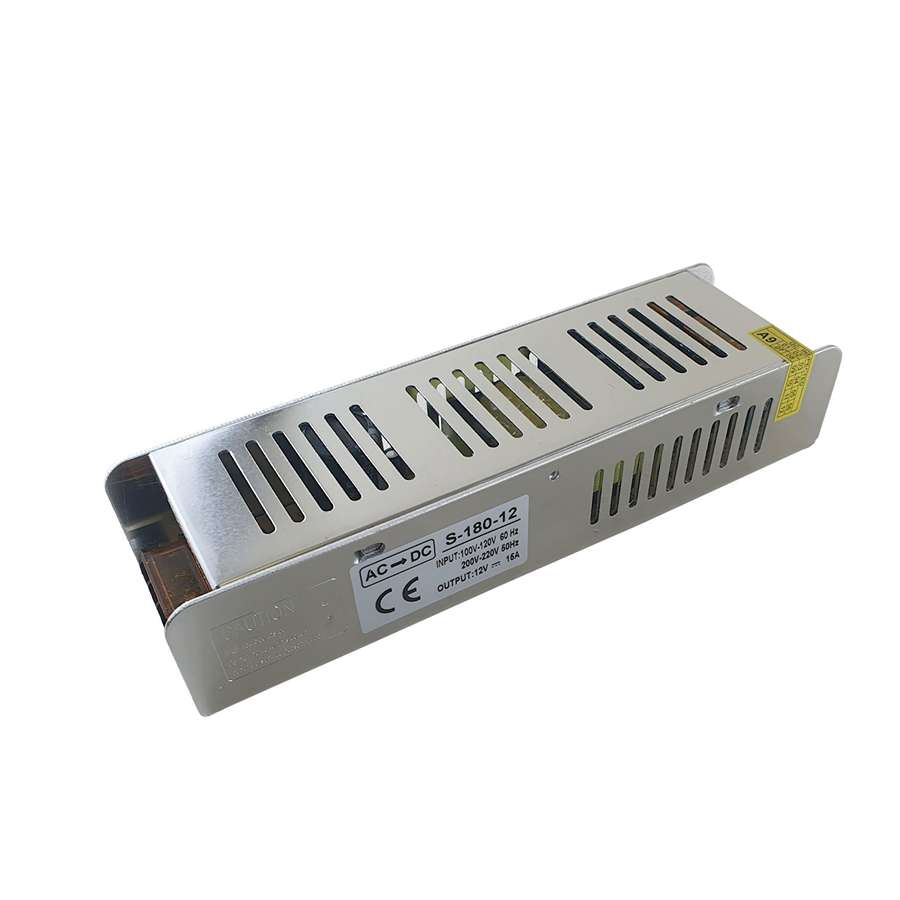

180W 100-220V 15A 200mm 60mm 40mm No 2 325g No

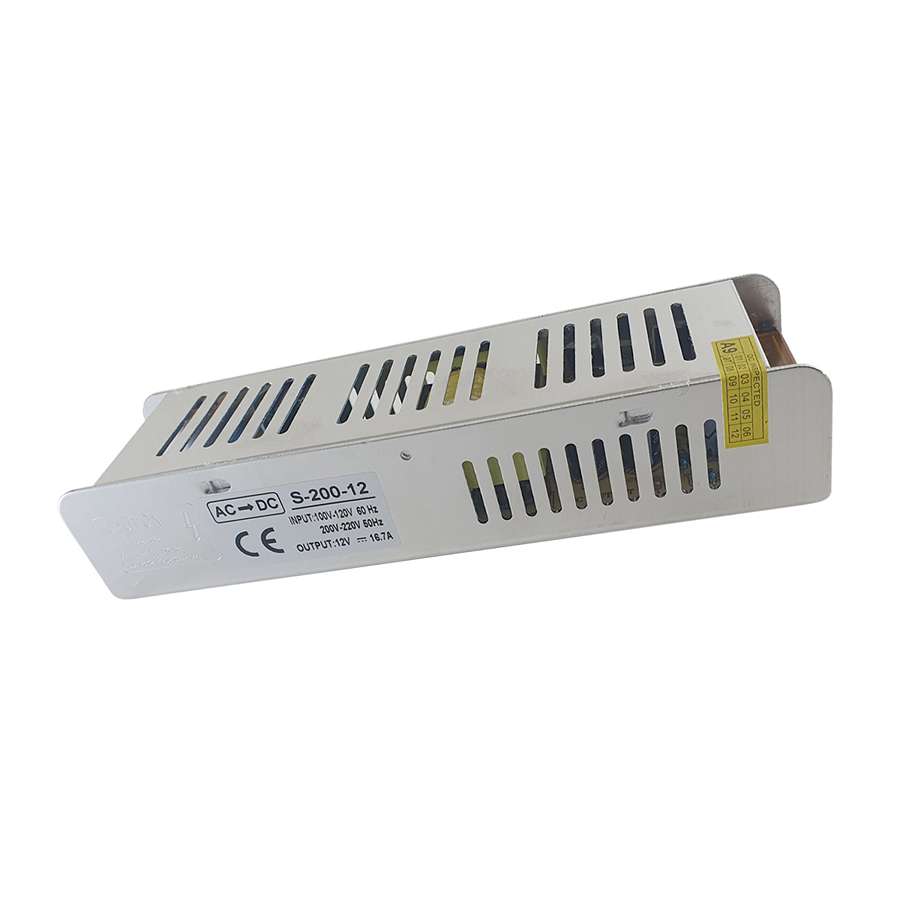

200W 100-220V 16.7A 200mm 60mm 40mm No 2 325g No

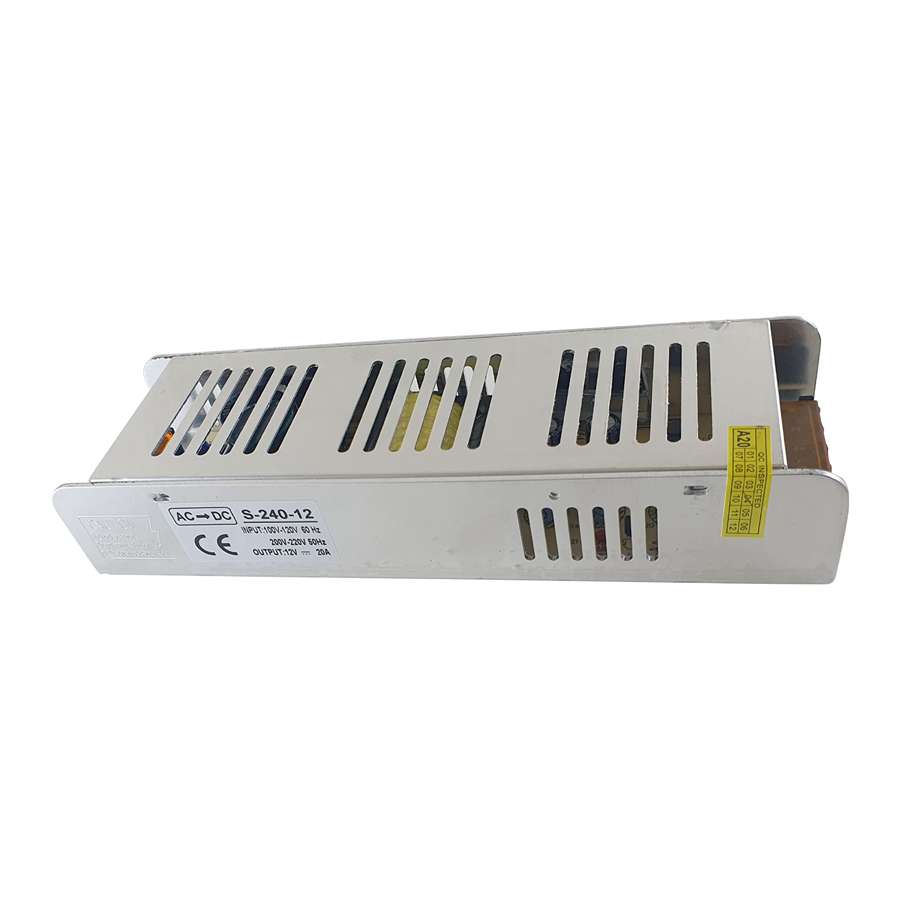

240W 100-220V 20A 224mm 69mm 40mm No 2 400g No

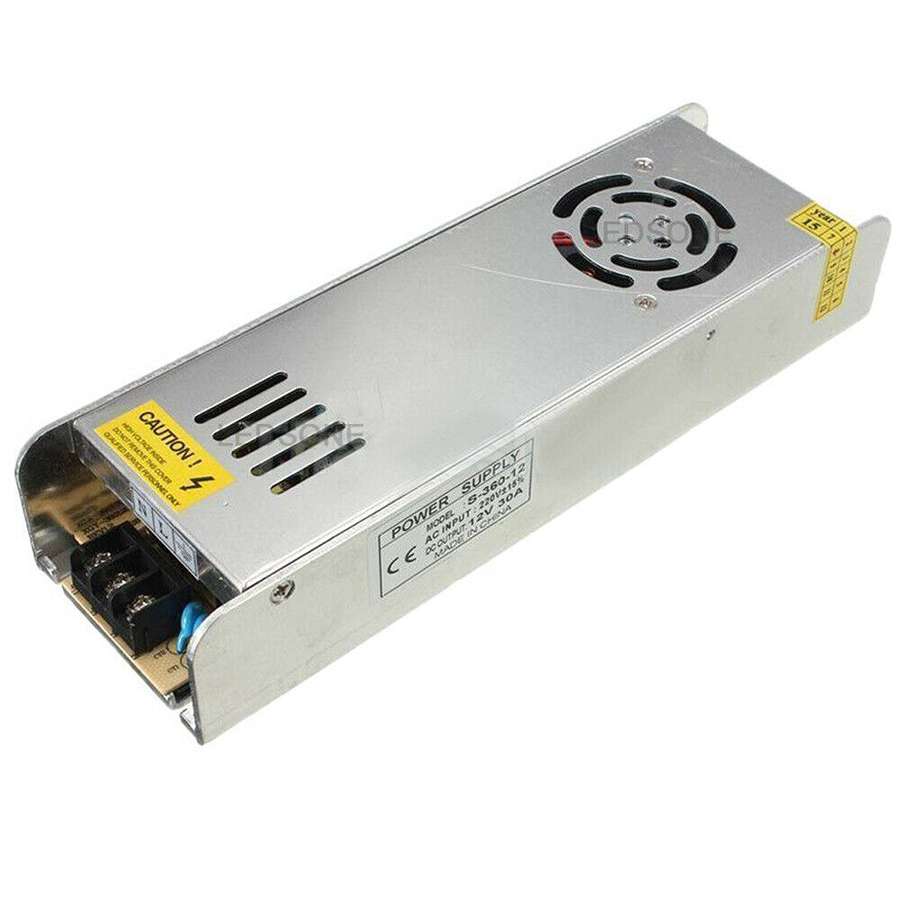

360W 100-220V 30A 224mm 69mm 40mm No 2 400g No



Note

  • Always choose a power supply that is at least 25% higher than or above the required wattage. For example, if your LED strip requires 75w, you should use a 100w or above LED transformer.
  • It is always advisable to seek the help of an electrically competent person if you are not familiar with electricity or electrical systems
